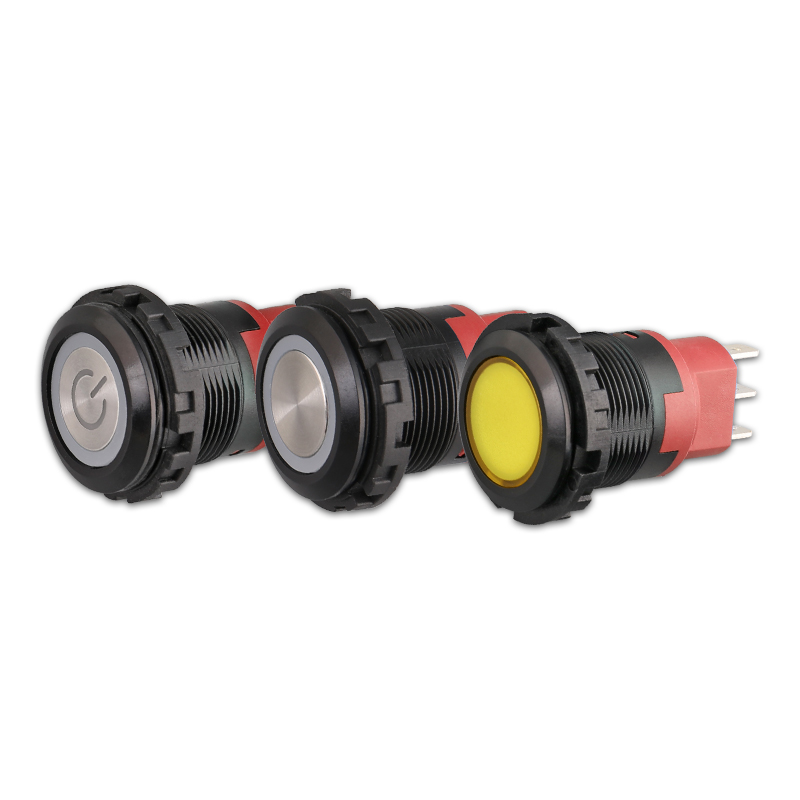

HBS1-D22F-11P/J/PC/H pushbutton switch 22mm plastic large flat head panel mount 1no1nc for Conveyor belt push button switch
● IP67 waterproof rating
● 10A 250V Current design
● Provide Bi/Tri-color led light
★Navigation bar
★Pushbutton switch product Introduction
Engineered for harsh environments and high-frequency operations, this industrial-grade pushbutton switch combines superior electrical performance, rugged mechanical construction, and versatile configuration options. Whether for automated production lines, heavy machinery, or outdoor public infrastructure, it delivers stable, safe, and long-lasting control solutions.
Universal Compatibility and Robust Performanc
The pushbutton switch features a wide-voltage design, ensuring seamless adaptation to global voltage standards for easy installation worldwide. With a high-rated capacity of 10A/250V, it reliably handles high-current loads, meeting the control demands of high-power equipment. The internal contacts utilize a 1NO1NC (one normally open, one normally closed) configuration, offering flexible circuit control logic for complex signal switching. Additionally, operators can choose between momentary (non-locking) and latching (self-locking) operation modes to suit specific application needs, enabling either Momentary control or sustained state retention.
Unmatched Durability and Environmental Protection
Durability is a cornerstone of this pushbutton switch's design. Meticulously engineered and rigorously tested, it achieves double the standard electrical lifespan, ensuring stable operation over 100,000 cycles. This significantly reduces maintenance frequency and replacement costs, guaranteeing long-term reliability. The IP67-rated waterproof and dustproof design effectively resists high-pressure water jets and dust ingress. Even in heavy rain, high humidity, or dusty industrial settings, the internal components remain dry and fully functional, ensuring trouble-free operation in any outdoor or industrial environment.
Rugged Construction and Flexible Installation
The pushbutton switch is built from high-quality materials for exceptional reliability. Choose between a flame-retardant nylon base for superior insulation or a stainless steel housing for maximum mechanical strength and corrosion resistance, catering to diverse installation requirements. The 4.8*0.8mm thickened terminal feet ensure secure wiring, minimize contact resistance, and prevent loosening or overheating caused by vibration or current surges, enhancing overall safety. The standard 22mm mounting hole design ensures compatibility with most control panels, making installation and replacement extremely convenient.
Enhanced Visual Feedback
For intuiitive status indication, the pushbutton switch supports dual-color and tri-color LED configurations. Different light colors provide clear visual feedback on equipment operation, fault alarms, or operational prompts, improving human-machine interaction efficiency and operational safety. Whether used for start, stop, emergency stop, or status indication, it performs flawlessly.
Choose this pushbutton switch for reliability, durability, and flexibility. It is more tha n just a control component; it is a critical element that ensures efficient equipment operation and enhances safety. Upgrade your control system today and experience the assurance of industrial-grade quality.
★Pushbutton switch product parameters
Product type |
Technical parameters |
Product parameters |
● Mounting hole size: 22mm
|
|

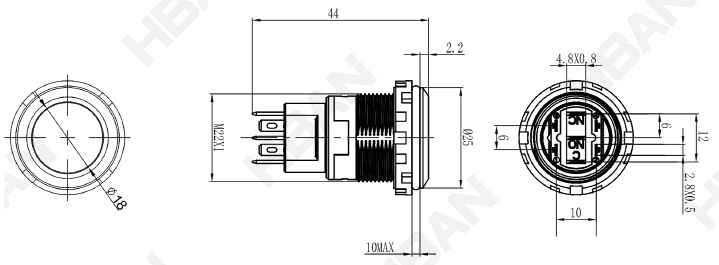

HBS1-D22F-11DP(Z)/J/PC/H【Large flat head】 |
|
|

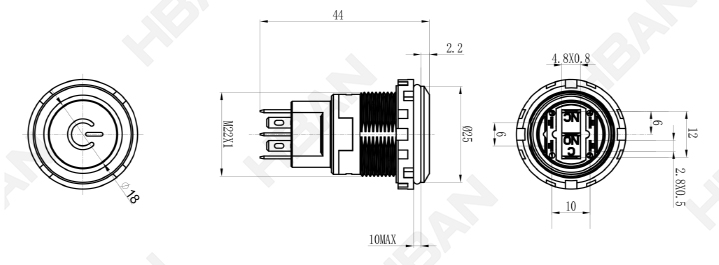

HBS1-D22F-11ET(Z)/J/PC/H【Ring power symbol head】 |
|
|
HBS1-D22F-11E(Z)/J/PC/H【Ring led head】 |
|
