★Pushbutton switch product Introduction

This product is a UL certified switch that meets strict international electrical safety standards. It provides critical compliance protection for equipment exports to North America and other markets that recognize UL standards, effectively improving the market acceptance and safety level of the end product.


Its core feature is the combination of authoritative safety certification, excellent environmental protection, flexible electrical configuration and solid mechanical structure. The product comes with a standard 16mm mounting hole, and the housing is available in stainless steel and nickel-plated brass. Stainless steel shell with excellent corrosion resistance and mechanical strength; The brass nickel-plated case provides excellent performance/price ratio while ensuring good protection, both of which meet the durability requirements of harsh environments.


With IP67 high protection level to ensure that the switch can completely prevent dust intrusion, and can withstand a short immersion in 1 meter deep water, protection performance is far beyond the ordinary waterproof level. Suitable for extreme conditions where high-pressure flushing, constant humidity, dust or accidental immersion may occur, such as outdoor equipment, food processing, ship decks and cleaning equipment.


The operating temperature range is -25℃ ~ +65℃, which can maintain stable performance in the cold outdoor environment or the high temperature inside the cabinet, and adapt to the complex climate conditions in most parts of the world.


Rated load up to 5A/250V, reliable control of higher power motors, solenoid valves, heaters and lighting equipment, extending the range of applications. Provide 1 normally open 1 normally closed (1NO1NC) and 2 normally open 2 normally closed (2NO2NC) two switch combinations. This flexible contact configuration enables it not only to perform simple on-off functions, but also to realize more complex linkage control, signal switching and interlocking logic to meet the diverse wiring needs of automation systems, safety loops and multi-functional control panels.


The pin terminal ensures the stability and convenience of the connection. In summary, with its UL safety certification, IP67 comprehensive protection, 5A load capacity and multi-contact configuration, the switch is an ideal choice for export equipment, outdoor heavy machinery, ship control, certified medical devices and other industrial applications where safety, reliability and environmental adaptability are critical.

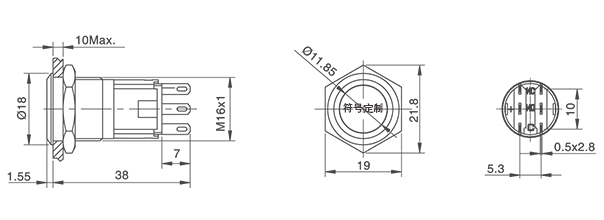

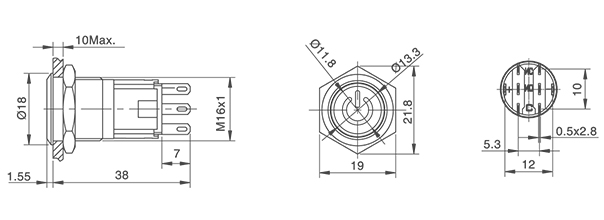

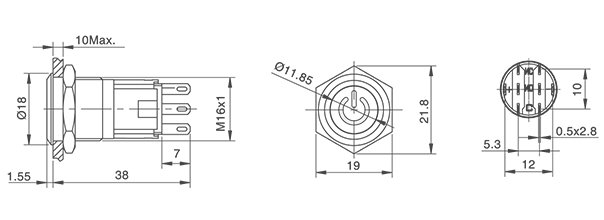

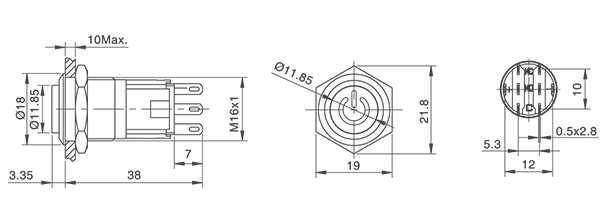

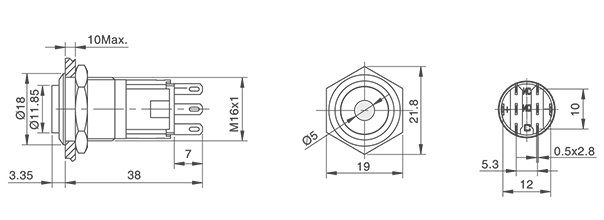

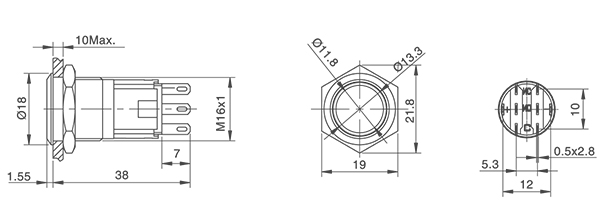

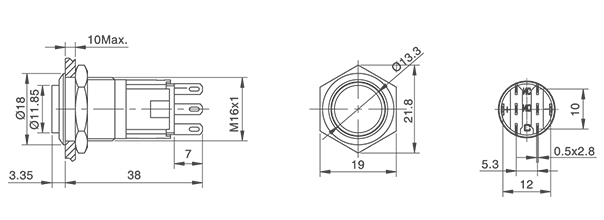

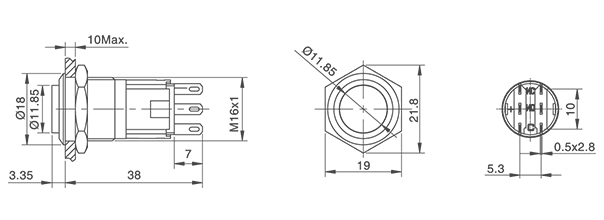

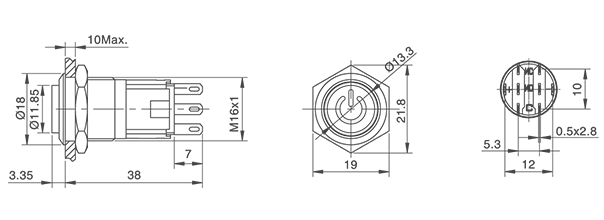

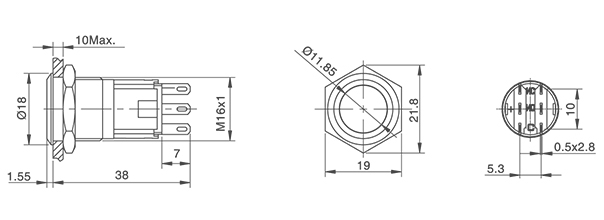

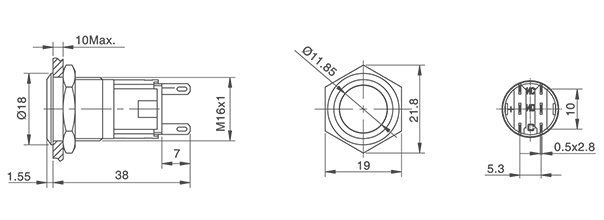

★Pushbutton switch product parameters

★FAQ

Q: Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.

Q: Can you provide samples ?
A: Yes,we can provide samples.we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you.

Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer),Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.

Q: What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours.

Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS.That’s a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing to ensure safety.We will be responsible to any product damage caused on delivery.
