HB-TS Series Touch Switch Product Introduction | HBAN Push button

Author : HBAN PUSH BUTTON SWITCHES

Update time : 2026-01-14 15:12:24

When choosing switches for industrial equipment panels, many customers hesitate: continue using traditional spring-structured buttons or upgrade to touch switches? In fact, combined with the high-frequency operation, complex environments (dust/oil/humidity), and long-term stable operation requirements of industrial scenarios, the advantages of touch switches have long surpassed those of spring-structured buttons. Today, we will not only unlock the 8 specifications and high-performance features of HBAN's HB-TS series industrial capacitive touch switches but also tell you from the root - why touch switches (especially the HB-TS series) are more worry-free, durable, and adaptable to future intelligent production than spring-structured buttons in industrial scenarios!

I. First, Understand the Core Differences: Touch Switches vs. Spring-Structured Buttons - Choose the Right One for Efficient Industrial Scenarios

Traditional spring-structured buttons rely on the pressing of mechanical contacts to turn on and off. Although seemingly mature, they hide many pain points in industrial scenarios. The HB-TS series pure capacitive touch switches, with their core design of no mechanical structure, accurately solve the fatal shortcomings of spring buttons. The core differences between the two are clear at a glance:

Comparison Dimension	Traditional Spring-Structured Buttons	HBAN HB-TS Series Touch Switches	Core Advantages in Industrial Scenarios
Service Life	Severe wear of mechanical contacts, regular service life only 100,000-500,000 times, prone to failure under high-frequency operation	No mechanical contacts, electrical life up to 1,000,000 times under rated load, 2-10 times that of spring buttons	Reduce the frequency of equipment shutdown for switch replacement, lower maintenance costs and production losses
Environmental Adaptability	Mechanical gaps are prone to dust, oil, and moisture ingress, waterproof rating is mostly below IP65, prone to short circuits in humid/dusty workshops	IK09 impact resistance + IP68 waterproof rating (Cannot be pressed underwater, resumes immediately after being taken out of water), seamless stainless steel structure, wide temperature adaptation from -25℃ to +70℃	Unaffected by workshop oil, humidity, dust, high and low temperatures, stable operation in harsh industrial environments
Operation and Maintenance	Requires strong pressing, long-term operation is prone to operator fatigue; mechanical structure is prone to jamming and poor contact, requiring regular cleaning and debugging	Triggered by light finger touch/wearing thin gloves, no pressing fatigue; no mechanical structure, maintenance-free, and the panel can be cleaned with a wipe	Improve operation efficiency, reduce later maintenance workload, adapt to high-frequency operation scenarios in industry
Anti-Interference and Intelligent Adaptability	Mechanical contacts are prone to electromagnetic interference, no intelligent linkage interface, difficult to adapt to the upgrading of automated and intelligent production lines	Equipped with imported chips + self-developed anti-electromagnetic interference algorithm, supports linkage with PLC and relays, adapts to industrial intelligent control systems	Align with the trend of Industry 4.0, assist in the intelligent upgrading of equipment, no need for additional modification of switch structure
Status Feedback and Safety	Illuminated models require additional lamp holders, complex structure; mechanical failures are prone to false triggers, general safety	Integrated red-green dual-color ring light, clear status visibility; false touch rate as low as 0.1%, waterproof and anti-false touch design for higher safety	Simplify equipment panel design, improve operational safety, reduce production risks caused by misoperation

Core Conclusion: Choosing a push button switch for industrial scenarios is essentially choosing a solution of "low maintenance, high stability, and intelligent adaptability". The HB-TS series touch switches not only avoid all the pain points of spring buttons but also become the optimal solution in high-frequency and complex environments with industrial-grade high-performance parameters!

II. Core Common Features of the HB-TS Series: Industrial-Grade High-Performance Parameters, More Adaptable to Industrial Scenarios Than Spring Buttons

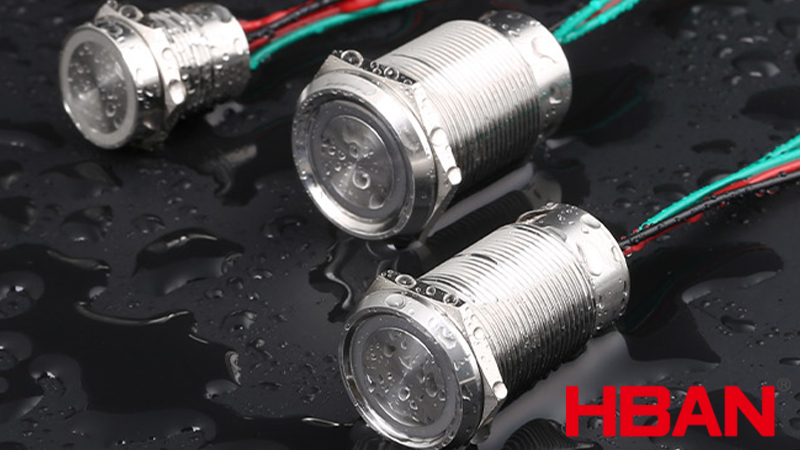

As a single industrial touch switch series meticulously created by HBAN, all 8 specifications of the HB-TS series are equipped with unified industrial-grade pure capacitive sensing technology, and standardize the following core high-performance parameters, fundamentally surpassing the performance limit of spring-structured buttons:

1.Industrial-grade capacitive sensing, precise touch without interference: The entire series is equipped with imported industrial-grade capacitive sensing chips, combined with HBAN's self-developed electromagnetic interference shielding algorithm, which can effectively resist electromagnetic interference from large equipment such as workshop inverters and motors, with precise touch recognition and no delay; the sensing sensitivity is adapted to industrial scenarios, which can be triggered by wearing thin gloves or light finger touch, and the false touch rate is as low as 0.1%, meeting the high-frequency and precise operation requirements of industrial equipment.

2. 1 million times electrical life, far exceeding spring buttons: The design without mechanical contacts fundamentally eliminates the wear and jamming problems of spring buttons. The electrical life reaches 1,000,000 times under the rated load of 3A/24VDC, which is 2-10 times that of conventional spring buttons; it can be directly connected to the industrial low-voltage control system, adapting to mainstream industrial control modules such as PLC and relays, with stable operation and no faults.

3.Extreme protection and wide temperature adaptation, capable of withstanding complex environments: The entire series comes standard with IK09 impact resistance rating + IP68 waterproof rating (Note: IP68 waterproof means it cannot be pressed underwater, and can resume normal use immediately after being taken out of water). The seamless stainless steel structure can effectively block the intrusion of dust, moisture, and oil, and can operate stably even in industrial workshops with high humidity, heavy dust, and heavy oil pollution; the operating environment temperature covers -25℃ to +70℃, which can be adapted to low-temperature workshops and high-temperature production lines, with full environmental adaptability.

4.Standardized wiring design, zero threshold for installation and adaptation: The entire series is equipped with 210mm 24awg lead wires, no additional terminal blocks are needed, and it can be directly connected to the equipment control system, with simple and convenient wiring; the lead wires are made of high-temperature and oil-resistant materials, with strong aging resistance and conductivity, complying with industrial equipment safety wiring specifications, greatly reducing installation and commissioning costs, and can even directly replace the original spring buttons without modifying the equipment panel.

5.Red-green dual-color lamp beads, clear visibility of equipment status: All illuminated models are equipped with red-green dual-color LED lamp beads. The "red/green" can be set to correspond to "stop/run", "on/off" and other states through the equipment control system, no additional indicator lights are needed, simplifying the equipment panel design, allowing operators to quickly identify the equipment working conditions, improving operation efficiency, and being more concise than the "switch + independent lamp holder" structure of spring buttons.

III. Understand the Model Before Selecting: HB-TS Series Coding Rules, Understand Core Parameters at a Glance

The model coding of the HB-TS series follows the principle of "specification parameterization". Each letter and number corresponds to specific product attributes. Remember the following decoding rules, and you can quickly judge the core configuration of the product without consulting customer service:

General coding format: HB-TSXX[P/C]-10[E][Z]/Y/S/XXV/RG

XX: Mounting hole size, 16=16MM, 19=19MM, 22=22MM;

[P/C]: Head type, P=Flat head (only available for 16MM specification), C=Concave head;

10: Contact configuration, representing one normally open;

[E]: Illuminated identifier, E=With ring light, no E=Without light;

[Z]: Operation type, Z=Latching type, no Z=Momentary type;

Y: Lead terminal;

S: Material, all are stainless steel;

XXV: Lamp bead working voltage, 9-24V/24V (no this parameter for non-illuminated models);

RG: Lamp bead color, red-green dual color (no this parameter for non-illuminated models).

Example: HB-TS16P-10EZ/Y/S/9-24V/RG

Decoding: 16MM mounting hole + Flat head + One normally open + With ring light + Latching type + Stainless steel material + Lamp bead voltage 9-24V + Red-green dual color.

IV. 8 Specifications in One Series: Full Parameter Comparison Table, Precise Selection According to Needs

Taking the mounting hole size as the core classification, the HB-TS series derives 8 standardized specifications with momentary/latching operation types and non-illuminated/illuminated head designs, covering all industrial scenarios from precision instruments to heavy machinery. The following is a full-specification parameter comparison table, save it for worry-free selection:

Product Model	Mounting Hole Size	Operation Type	Head Type	Contact Configuration	Material	Illumination Parameters	Core Adaptable Scenarios
HB-TS16P-10/Y/S	16MM	Momentary	Flat head, non-illuminated	One normally open	Stainless steel	Non-illuminated	Precision instruments, small automated equipment, industrial robot control panels, control scenarios that do not require light status feedback
HB-TS16P-10Z/Y/S	16MM	Latching	Flat head, non-illuminated	One normally open	Stainless steel	Non-illuminated	Small control cabinets, micro-equipment, service robot continuous work control, control scenarios that require continuous on-off status
HB-TS16P-10E/Y/S/9-24V/RG	16MM	Momentary	Flat head, ring light	One normally open	Stainless steel	9-24V, red-green dual color	Precision instruments, small production lines, robot precise operations, home charging piles, small home coffee machines, precise control scenarios that require light status feedback
HB-TS16P-10EZ/Y/S/9-24V/RG	16MM	Latching	Flat head, ring light	One normally open	Stainless steel	9-24V, red-green dual color	Small automated equipment, control scenarios that require continuous status + light feedback
HB-TS19C-10E/Y/S/24V/RG	19MM	Momentary	Concave head, ring light	One normally open	Stainless steel	24V, red-green dual color	Medium-sized production lines, machine tools, commercial coffee machines, small commercial charging piles, scenarios with anti-false touch + light status feedback
HB-TS19C-10EZ/Y/S/24V/RG	19MM	Latching	Concave head, ring light	One normally open	Stainless steel	24V, red-green dual color	Fan pumps, medium-sized control cabinets, control scenarios with continuous on-off + anti-false touch; Medium-sized production lines, machine tools, small commercial charging piles, scenarios with anti-false touch + light status feedback
HB-TS22C-10E/Y/S/24V/RG	22MM	Momentary	Concave head, ring light	One normally open	Stainless steel	24V, red-green dual color	Heavy machinery, large power distribution cabinets, commercial charging piles, scenarios with large-size touch + light status feedback
HB-TS22C-10EZ/Y/S/24V/RG	22MM	Latching	Concave head, ring light	One normally open	Stainless steel	24V, red-green dual color	Main operation platforms of production lines, heavy equipment, continuous on-off + large-size anti-false touch scenarios; Heavy machinery, large power distribution cabinets, commercial charging piles, scenarios with large-size touch + light status feedback

How to Choose the Operation Type: Momentary Buttons vs. Latching Buttons

Momentary type (without Z): After touch triggering, the switch resets automatically, suitable for inching control scenarios, such as equipment inching start, single operation control commands, etc.;
Latching type (with Z): Touch once to trigger on-off, remain in the state after release, touch again to reset, suitable for continuous on-off control scenarios, such as long-term equipment operation, continuous motor work, constant lighting, etc.

Popular Industry Selection Guide: Precise Adaptation Schemes for Charging Piles/Robots/Coffee Machines

For the special usage scenarios of segmented industries such as charging piles, robots, and coffee machines, combined with the core parameters of the HB-TS series, we have sorted out exclusive selection schemes, which can be directly matched:

Charging pile industry (home/commercial): Core needs are waterproof and dustproof, outdoor weather resistance, and status visualization. Recommended models: For 16MM, choose HB-TS16P-10E/Y/S/9-24V/RG (momentary); for 19MM, choose HB-TS19C-10E/Y/S/24V/RG (momentary); for 22MM, choose HB-TS22C-10E/Y/S/24V/RG (momentary). Selection reasons: IP68 waterproof + wide temperature adaptation, can withstand outdoor rain, snow, high and low temperature environments; red-green dual-color lights can clearly display "charging (green)/stopped (red)"; 16-22MM aperture covers the panel installation needs of small home piles and large commercial piles, and the seamless structure avoids rainwater and dust intrusion affecting charging safety.
Robot industry (industrial robots/service robots): Core needs are precise touch, anti-interference, and small-size adaptation. Recommended models: Priority is given to HB-TS16P-10E/Y/S/9-24V/RG (momentary) or HB-TS16P-10EZ/Y/S/9-24V/RG (latching). Selection reasons: 16MM flat head design adapts to the compact control panel of robots; imported capacitive chips + anti-electromagnetic interference algorithm avoid interference from motors and controllers inside robots; momentary type is suitable for robot inching operations, latching type is suitable for continuous working mode, and can be accurately triggered even when wearing thin gloves, meeting high-frequency operation needs.
Coffee machine industry (commercial/home high-end models): Core needs are oil-proof, easy to clean, and anti-false touch. Recommended model: Priority is given to 16MM HB-TS16P-10E/Y/S/9-24V/RG (momentary, flat head ring light). Selection reasons: The flat design has no depressions, so it will not accumulate coffee oil and cleaning water stains, and can be cleaned with a wipe, perfectly adapting to scenarios with heavy oil pollution and frequent cleaning; the concave model is not suitable for coffee machines because oil stains are easy to remain and difficult to clean; the 16MM specification adapts to small home coffee machines, and the red-green dual-color lights can display "heating (red)/ready (green)", simplifying the operation logic.

V. Exclusive Q&A for Industrial Customers, Eliminate Procurement/Usage Concerns

Regarding the model selection, installation and use, bulk procurement and other issues of the HB-TS series, we have sorted out the most concerned content of industrial customers, and answered them accurately one by one combined with product parameters:

1. How to specifically understand the IP68 waterproof rating of the HB-TS series? Can it not be used at all in water?

The IP68 waterproof rating of this series is for immersion protection. When the equipment falls into water, the touch function cannot be triggered temporarily to avoid false operations in water; after being taken out of water, it can resume normal touch and light functions immediately without additional processing, fully meeting the waterproof and dustproof needs of industrial scenarios.

2.The included 24awg lead wire is 210mm. Can the length or specification be customized?

Yes! The entire series supports customization of lead wire length and specifications. Bulk procurement customers (minimum order quantity 500pcs) can customize lead wire parameters (such as extending to 300mm, replacing with 22awg specification) according to the equipment wiring needs, no need for additional wire extension, and more accurate adaptation.

3.Can the HB-TS series directly replace the original spring-structured buttons? Do I need to modify the equipment panel?

Absolutely! The series provides three standardized mounting hole sizes: 16/19/22MM, which are consistent with the mounting hole sizes of conventional industrial spring buttons. Moreover, the wiring method is simple, no need to modify the equipment panel, and electricians can complete the replacement within 10 minutes, achieving seamless upgrading.

4.Is there a price difference between different specifications of the HB-TS series? Is there a unified discount for bulk procurement?

Within the same series, the basic price of different specifications varies slightly according to the process complexity (such as illuminated/non-illuminated, latching/momentary), but all specifications are included in the unified bulk procurement discount system. Regardless of which model is purchased, the larger the total purchase volume, the lower the discount. The source manufacturer quotes directly, with no middleman price difference.

VI. Exclusive Procurement Benefits for HBAN Brand! HB-TS Series Industrial Touch Switches, More Cost-Effective for Bulk Procurement

As a source manufacturer deeply engaged in the production of industrial button switches, we have prepared exclusive procurement benefits for industrial customers of the HB-TS series. From sample testing to bulk supporting, we provide intimate services and real discounts throughout the process to ensure equipment procurement and production efficiency:

✅ Bulk procurement discount: For all 8 specifications of the HB-TS series, enjoy 5% off for purchases ≥1000 pieces, 10% off for ≥5000 pieces, 20% off for ≥10000 pieces, and large-value orders can contact the customer manager for exclusive bottom prices;

✅ After-sales and technical support: All products of the HB-TS series come with a 1-year warranty. Bulk procurement customers can enjoy free technical guidance for installation, with exclusive customer managers assigned. Order follow-up and after-sales issues will be responded to within 5 hours to ensure the normal production of equipment.

Click the link below to immediately consult the specifications/quotations/samples/customization needs of the HB-TS series. Tell us your equipment panel mounting hole size and operation type requirements (momentary/latching), and we will accurately recommend the suitable model - replacing traditional spring buttons with the HB-TS series touch switches can not only solve the pain points of frequent replacement and troublesome maintenance but also lay the foundation for the intelligent upgrading of equipment!

The HBAN HB-TS series industrial capacitive touch switches are a masterpiece of our dedication to the field of industrial button manufacturing - with industrial-grade high-performance parameters such as 1 million times electrical life and IP68 waterproof in one series, realizing full-scenario adaptation with 8 standardized specifications, and fundamentally surpassing the performance limitations of traditional spring-structured buttons with the core design of "no mechanical structure". Under the trend of industrial intelligence and high efficiency, choosing the HB-TS series is choosing a more stable, worry-free, and future-adaptable industrial control solution!
