Metal micro switch

micro travel pushbutton reset metal ring led 12v ip67 19mm switch

Item No.: HBGQ19SF
Introducing our micro Travel Pushbutton Reset Metal Ring LED 12V IP67 19mm Switch, a compact yet powerful control solution designed to meet your needs. This high-quality switch features a micro travel pushbutton design, allowing for precise and responsive operation. With its reset functionality, it offers convenient control for various applications. The metal construction ensures durability and reliability, making it suitable for demanding environments. The built-in ring LED adds a modern touch while enha
Description
Product introduction

Introducing the small and reliable 19MM micro travel switch with the added benefit of tactile feedback for an enhanced user experience. With its momentary push button switch, this device offers easy-to-operate push button functionality that ensures rapid response times.

Designed to withstand harsh environmental conditions, the device comes with an IP67 rating, making it suitable for use in various applications. Its one normally open contact configuration provides versatility, making it ideal for use in a range of devices, from automotive electronics to industrial control systems.


The device features a ring LED, which not only adds an element of visual appeal but also enhances the ease of operation, making it easy to identify when the switch is activated. The LED is also designed to provide a long lifespan, ensuring that the switch remains functional for an extended period.


With its micro travel feature, this switch offers a unique tactile feel, providing precise actuation for accurate and reliable performance. The small size of the device makes it perfect for use in small-scale applications, where space is a concern.

The easy-to-operate push button switch ensures that the device is user-friendly, making it suitable for a wide range of users, from experienced professionals to novices. The momentary push button switch ensures that the device is safe to use, preventing any unintended activations.


In conclusion, the small 19MM micro travel switch is an exceptional device that combines tactile feedback with rapid response times, making it ideal for use in various applications. Its IP67 rating, momentary push button switch, one normally open contact configuration, ring LED, and micro travel feature make it a versatile and reliable choice for any industrial control system.



  Product parameters

Legend

Model

Description

Dimensions

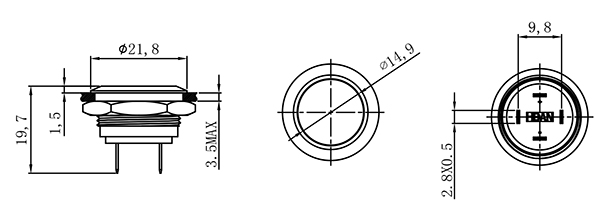

HBGQ19SF-10W/J/S

●Mounting hole size: Ø19mm
●Head shape: Flat head
●Operating stroke: about 0.5mm
●Switch rating: 50mA/DC12V
●Switch combination: 1NO
●Operation Type: Momentary
●Wiring type: Pin terminal
●Shell material: Stainless steel
●Waterproof grade: IP67

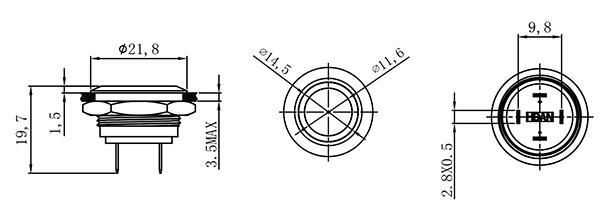

HBGQ19SF-10WE/J/S/▲/△


●Mounting hole size: Ø19mm
●Head shape: Ring LED
●Operating stroke: about 0.5mm
●Switch rating: 50mA/DC12V
●Switch combination: 1NO
●Operation Type: Momentary
●Wiring type: Pin terminal
●LED color: Red/Green/Yellow/Orange/Blue/White
●Shell material: Stainless steel
●Waterproof grade: IP67
